2.4. Input files

mizuRoute expects 2 or 3 input data depending on how runoff data is provided for river routing (more needed if activating lake, water management, solute transport, gauge data). This section describe input data required for river routing without those advanced features.

If runoff data is provided at each river network HRU (RN_HRU), river network data and runoff data are expected. Otherwise, mizuRoute needs to remap runoff at hydrologic model HRU (HM_HRU) to river network HRU with areal weight averaging. In this case, one additional data, remapping data, is required. All the data need to be stored in netCDF.

Basic netCDF requirement (variable, dimension, etc) are discussed below. Dimension and variable names list mizuRoute default name but can be whatever. If they are not default name, the variable names need to be speficied in control file. Some of variables and dimensions (even if they are the same as default name) have to be specified in control file

2.4.1. River network file (required)

River network netCDF holds river reach-reach topology, reach-hru topology, and river and hru physical parameters. The tables below list minimum requirement. Full list of reach/hru physical parameters possibly included are full list of river and hru physical parameters.

It is recommended that river network topology is built within mizuRoute instead of computing outside, while physically parameters are ideally provided per reach and hru.

Dimensions required

Dimension	Description
seg	river reach
hru	river network catchment or hru (hydrologic response unit)

Minimum variables required

Variable	Dimension	Unit	Type	Description
segId	seg	-	int	unique id of each stream segment
HRUid	hru	-	int	unique hru ID
downSegId	seg	-	int	id of the downstream segment
hruSegId	hru	-	int	id of the stream segment the HRU flows into
area	hru	m2	real	hru area
slope	seg	-	real	slope of segment (elevation drop/length)
length	seg	m	real	length of segment

Negative or zero (<=0) value for downSegId and hruSegId is reserved for no downstream reach, meaning that such reach or hru does not flow into any reach. (i.e., basin outlet). For this reason, segID is required to use positive integer value (>0).

2.4.2. Runoff file(s) (required)

Runoff (total runoff) data can be provided as 1) 2D [time, RN_hru], 2) 2D [time, HM_hru] or 3) 3D [time, i, j].

• Option 1. runoff is given at each river network HRU

• Option 2. runoff is given at each hydrologic model HRU (non-grid)

• Option 3. runoff is given at grid

Dimensions

Option	Dimension	Description
1,2,3	time	time dimension
1	RN_HRU	river network catchment or HRU dimension
2	HM_HRU	hydrologic model catchment or HRU dimension
3	i	x direction dimension
	j	y direction dimension

Variables

Option	Variable	Dimension	Unit	Type	Description
1,2,3	time	time	[time-unit] since yyy-mm-dd 00:00:00	real	time
1	RN_hruID	RN_hru	-	int	river network HRU ID
2	HM_hruID	HM_hru	-	int	hydrologic model HRU ID
1	runoff	time, RN_hru	[length-unit]/[time-unit]	real	total runoff
2		time, HM_hru
3		time, i, j

Attributes: Time variable need at least 2 attributes- units and calendar. Four types of calendar can be handled. These are noleap, standard, gregorian, and proleptic_gregorian. Time unit format is shown in the table.

2.4.3. Runoff mapping file (required depending on case)

mizuRoute has a capability to remap forcing at different catchments or grid to catchment or grid defined in river network used for routing using weighted average. A user needs to provide a mapping file in netCDF. See Runoff mapping data for mapping file structure. Breifly, mapping can be either catchment (i.e., unstructure grid) to river network catchment (option 2) or grid to river network catchment (option 3). option 1 is forcing provided at the same catchment as the one in river network, in which case no mapping is required.

For runoff input options 2 and 3, runoff mapping data in netCDF must be provided so that weighted average runoff value is computed for each river network HRU.

Option	Dimension	Description
2,3	hru	River network HRU
2,3	data	Vectorized overlapping HRU (or grid boxes)

Control file keys for remapping.

option	control variable	Descriptions
	<is_remap>	Logical to indicate runoff needs to be remapped to RN_HRU. set T to activate remapping option
2,3	<fname_remap>	netCDF name of runoff remapping

Required runoff mapping netCDF variables

option	control variable	Descriptions
2,3	<vname_hruid_in_remap>	variable name for RN_HRUs
2,3	<vname_weight>	variable name for areal weights of overlapping HM_HRUs
2	<vname_qhruid>	variable name for HM_HRU ID
3	<vname_i_index>	variable name of ylat index
3	<vname_j_index>	variable name of xlon index
2,3	<vname_num_qhru>	variable name for a numbers of overlapping HM_HRUs with RN_HRUs
2,3	<dname_hru_remap>	dimension name for HM_HRU
2,3	<dname_data_remap>	dimension name for data

Option	Variable	Dimension	Unit	type	Descriptions
2,3	RN_hruId	hru	-	int	River network HRU ID
2,3	nOverlaps	hru	-	int	number of overlapping HM_HRUs for each RN_HRU
2,3	weihgt	data	-	real	areal weight of overlapping HM_HRUs
2	HM_hruId	data	-	int	ID of overlapping HM_HRUs
3	i_index	data	-	int	i direction index overlapping grid boxes
	j_index	data	-	int	j direction index overlapping grid boxes

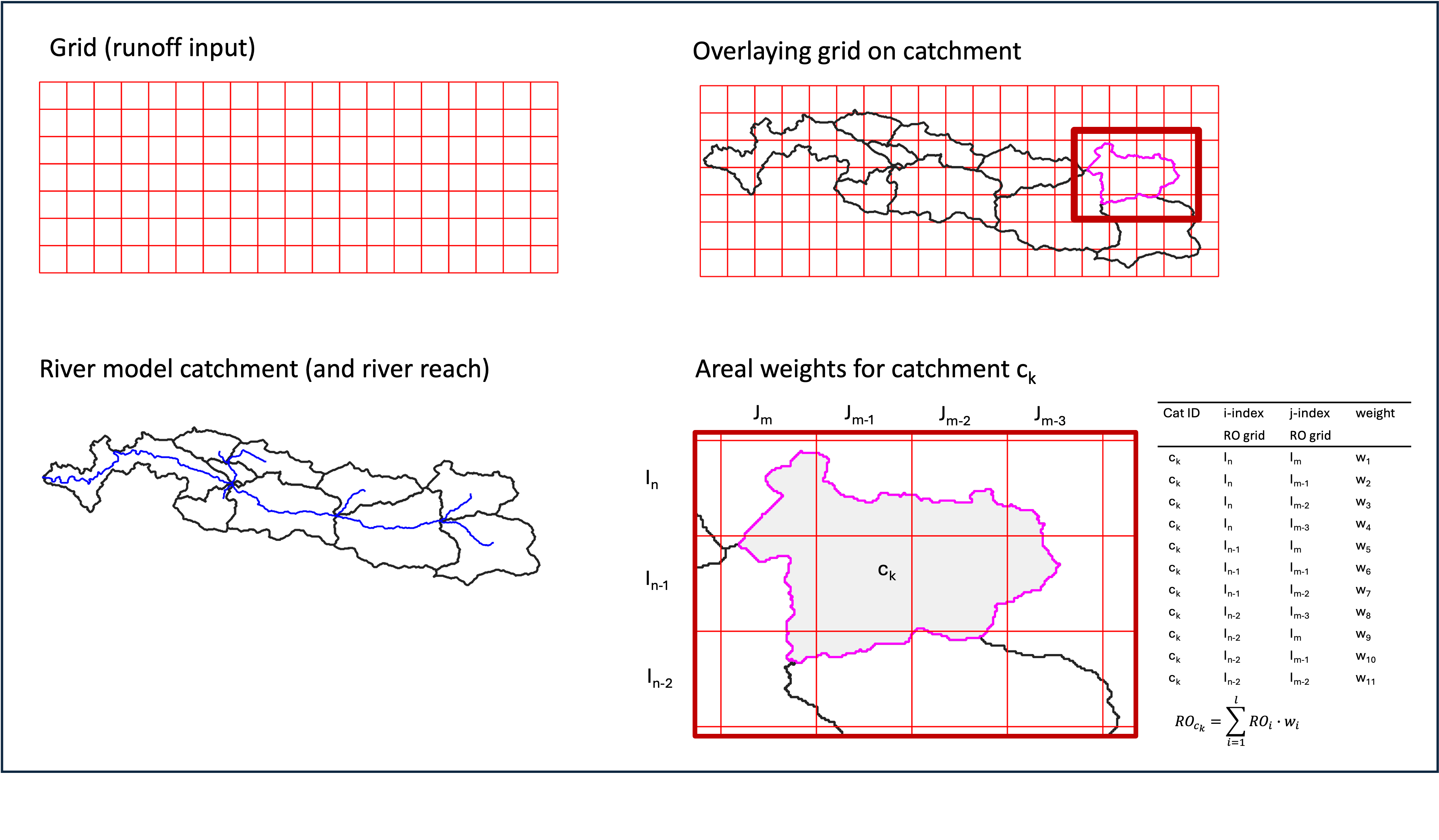

Creating a mapping is basically GIS intersection of two geometries. The figure below visualizes intersection between runoff grid (option 3) and river network catchment (HRU) polygons. This example (right bottom) shows river network HRU, c_k, has 11 overlapping grid boxes (nOverlaps=11 in a mapping netCDF. see table above) and corresponding weights (i.e., fractions of each overlapped grid boxes to total area of c_k) as well as i_index and j_index. In a mapping netCDF, all 1D arrays of weights (and i_index and j_index) from each HRU are combined for a large single 1D array. The order of the arrays from each HRU must match the order of RN_hruId

There are a few tools available to create the netCDF with required data:

1. mizuRoute_remapping (https://github.com/ShervanGharari/mizuRoute_remapping)

2.4.4. Unified ASCII parameter file (optional)

2.4.5. Restart file (optional)

2.4.6. Water management file (optional)

2.4.7. Gauge data file (optional)

mizuRoute can read gauge observed discharge data (in netCDF) along with gauge meta ascii data. To read gauge observation and gauge metadata, the following control variables need to be specified. gauge meta ascii file is csv format, and should include at least gauge id and corresponding reach id gauge discharge data is used for data assimilation (current version does not include this at this moment) Using gauge data, a user can output the simulation at gauge only output in addition to at the entire river network and/or direct insertion to modify discharge whenever observed discharge is available.

control variable	Description
<gageMetaFile>	gauge meta file (two column csv format): gauge_id (non-numeric ID is accepted), seg_id
<outputAtGage>	logical value (T or F) to limit history variable output at gauge reaches.
<fname_gageObs>	gauge discharge data
<vname_gageFlow>	variable name for discharge [m3/s]
<vname_gageSite>	variable name for gauge site name (character array)
<vname_gageTime>	variable name for time
<dname_gageSite>	dimension name for site
<dname_gageTime>	dimension name for time
<strlen_gageSite>	maximum gauge name string length

Direct insertion, the simplest data assimilation, can be performed at a list of reaches in the metadata. Two parameters, <QerrTrend> and <ntsQmodStop>, are needed. <QerrTrend> tells how bias computed at observation time at each reach evolves in the subsequent future <ntsQmodStop> time steps. To activate direct insertion of observed discharge into simulated discharge, the following control variables need to be specified.

control variable	Description
<qmodOption>	activation of direct insertion. 0 -> do nothing, 1=> discharge direct insertion
<ntsQmodStop>	the number of time steps when flow correction stops
<QerrTrend>	temporal discharge error trend. 1->constant, 2->linear, 3->logistic, 4->exponential
